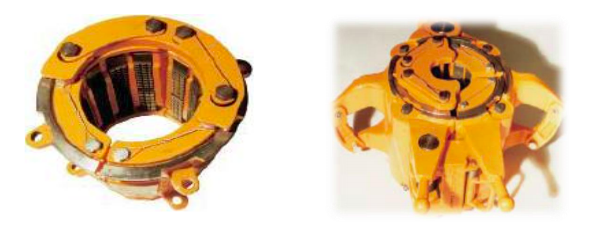

Slip Type Center Latch Elevator

Slip Type Center Latch Elevator

German Origin by FORUM (Blohm+Voss) Oil Tools

Type

Part-No.



rated capacity

Link Size min.-max.

BVC-75

670 720

Casing Elevator complete less slips

75 tons

2 1/4“ - 2 3/4“

BVC-100

671 100

Casing Elevator complete less slips

100 tons

2 1/4“ - 2 3/4“

BVC-125

671 200

Casing Elevator complete less slips

125 tons

2 1/4“ - 3 1/2“

BVC-150

671 500

Casing Elevator complete less slips

150 tons

2 1/4“ - 3 1/2“

BVC-200

672 000

Casing Elevator complete less slips

200 tons

2 1/4“ - 3 1/2“



Type

Size

A

B

C

BVC - 75

1,315“- 7“

330mm = 13“

784mm = 30

694mm = 27 21/64“

BVC - 100

1,315“- 7“

330mm = 13“

784mm = 30 7/8“

694mm = 27 21/64“

BVC - 125

1,315“- 7“

330mm = 13“

7/8“957mm = 37 43/64“

752mm = 29 39/64“

BVC - 150

1,315“- 7“

330mm = 13“

957mm = 37 43/64“

752mm = 29 39/64“

BVC - 200

2 3/8“ - 7 3/4“

400mm = 15 3/4“

1104mm = 43 15/32“

906mm = 35 43/64“



MANUAL OPERATED ELEVATORS

USA Origin by National Oil Varco (NOV)

operated elevators for lifting all existing pipe:

Collar type center latch A series

18° center latch G series

Collar type side door X series

Auxiliary S-series

The elevators are suitable for handling casing, tubing, plain & upset drill pipe, collar type drill pipe, 18° drill pipe, IU, EU and IEU pipe etc., depending on the type and rating.

AIR OPERATED ELEVATORS

Air operated elevators are conventional center latch elevators to which power actuation has been added. This feature permits remote opening of the elevators. All NOV elevators are designed and manufactured in strict accordance with ISO-API standard 8C.

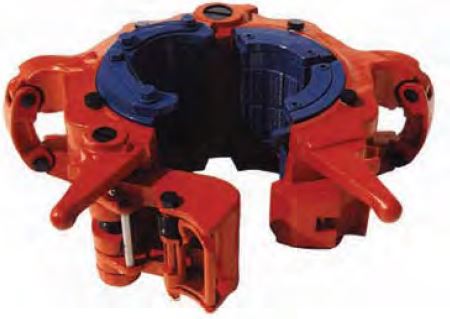

SLIP TYPE ELEVATORS

NOV ''Y'' series elevators are conventional slip type elevators for handling tubing and small casing. They feature a four slip design which give an optimum contact on the pipe to prevent bottle necking and gauge damage.

SLIP TYPE ELEVATORS MYC, YC & HYC SERIES

HYC Casing Elevator

The HYC elevator is a powerful 200 sTon (181 Tonne) capacity elevator and can handle from 2.7/8" to 7.3/4" tubing or casing. The full range can be achieved with the use of 5 sets of slips for the complete range. All slips provide a full 10.1/2" (7.5/8" slip has a height of 8.625") of insert contact to firmly grip your casing or tubing. The HYC elevator as with all Type 'Y' series elevators operate with the latch lock combination for safety.

Size range and capacity:

2.7/8" through 7.3/4" (73-197 mm) OD. API rated capacity is 200 sTon (181 Tonne).

MYC Casing Elevator

With its 125 sTon (114 Tonne) capacity the MYC elevator completes the range of Y type elevators for handling either external upset or API collar type casing or tubing. The MYC elevator has a range of 3.1/2" to 7", utilizing the same slips as the YC elevator. All slips provide a full 7" of insert contact to firmly grip your casing or tubing. The MYC operates with a latch and a latch lock combination for safety.

Size range and capacity:

3.1/2" to 7" (89-178mm) OD. API rated capacity is 125 sTon (114 Tonne).

YC Casing Elevator

The YC elevator is an exceptionally versatile elevator that handles either external upset or API collar type casing simply by installing the proper size insert-type slips and slip-setting ring assembly. In addition, slips can be provided that enable the YC elevator to handle dual strings of tubing. To reduce the possibility of the elevator opening under load, a latch lock is provided in addition to the spring type-latch. The rugged, long-lasting slip inserts are easily changed when they become worn. Size range and capacity:

3.1/2" (89 mm) through 7" (178 mm) casing. API rated capacity is 75 sTon (68 Tonne)

TECHNICAL SPECIFICATIONS



Type

Part number

Load rating

Size



Size



Max. Weight

Link size (min/max)





[sTon]

[inches]

[mm]

[lbs]

[kg.]

[inches]

[mm]

[inches]

[mm]

YC

24140Y

75

3.1/2 - 7

89-178

445

206

2.1/4

57

2.3/4

70

MYC

200360Y

125

3.1/2 - 7

89-178

750

336

2.1/4

57

2.3/4

70

HYC

BJ55310Y

200

2.7/8 - 7.3/4

73-197

997

452

2.1/4

57

3.1/2

89

HYC AO

BJ70166Y

200

2.7/8 - 7.3/4

73-197

1415

642

2.1/4

57

3.1/2

89

* SR4





SLIP ASSEMBLIES

HYC

Size

Slip assembly part number

Slip setting ring part number

Insert part

No. required

Bottom guide plate set part number

Weight Slip Ass'y

Weight Guide plate













[lbs]

[kg]

[lbs]

[kg]

3.1/2"

201353Y

55516

16441

24

26827-1

282

128

18

8

3.1/2" x 2.7/8"*

201355Y

201357

201356

24

201358

282

128

18

8

4.1/2" x3.1/2"

55509Y

55518

24779

24

26827-1

275

125

15

7

4.1/2" x4"

55510Y



24781

24

26827

270

123

15

7

4.1/2"

55511Y

55520

BJ16408

24

24071-4

268

122

5

2

5.1/2" x4.1/2"

55513Y1

55520

24785

24

24071-4

268

122

5

2

5.1/2"x5"

55512Y

55520-1

24783

36

24071

251

114

14

6

5.1/2"

55513Y

55520-1

BJ16407

36

24071-1

238

108

13

6

7" x 5.3/4"

55515Y2

55521

29254

36

24071-7

238

108

13

6

7" x 6"

55515Y1

55522

24785

48

24071-5

234

106

10

5

7"x 6.5/8"

55514Y

200217

24748

48

24071-3

234

106

10

5

7"

55515Y



BJ16407

48

24071-2

229

104

8

4

7.5/8" x 6.5/8"

70009Y2

200440

25474-1

48

24071-3

229

104

8

4

7.5/8" x 7"

70009Y1

200440-1

26750-1

48

24071-2

229

104

9

4

7.5/8" x 7.1/4"

70009Y5



39287-1

48

24071-9

230

105

7

3

7.5/8"

70009Y

70012

70010

48

24071-6

230

105

7

3

7.3/4"

70009Y4

201546

32477-1

48

24071-8

230

105

7

3























MYC & YC

Size

Slip assembly part number

Slip setting ring part number

Insert part

No. required

Bottom guide plate set part number

Weight Slip Ass'y

Weight Guide plate













[lbs]

[kg]

[lbs]

[kg]

4.1/2" x 3.1/2"

34931Y

34932

24779

16

26827-1

130

59

15

7

4.1/2" x 4"

26830Y

30209

24781

16

26827

120

54

15

7

4.1/2"

24072Y5

30219

BJ16408

16

24071-4

116

53

5

2

5.1/2" x 5"

24072Y7

30220

24783

16

24071

112

51

14

6

5.1/2"

24072Y2

30223

BJ16407

16

24071-1

101

46

13

6

7" x 6.5/8 "

24077Y7

30226

24748

24

24071-3

97

44

10

5

7"

24077Y1

30229

BJ16407

24

24071-2

95

43

8

4



* Requires special trigger part number 203333

SLIP TYPE ELEVATORS YT, MYT & HYT SERIES

USA Origin by National Oil Varco (NOV)

YT Slip Tubing Elevator

The YT elevator is an outstanding combination tool for use with any of the power tubing spiders. It has four slips each contacting 9' (228.6 mm) of pipe length. The interlocking slips form a circle around the tubing, assuring a uniform grip. Slip inserts are easily replaceable. Only one set of slip bodies is required to handle all tubing sizes from 1.315" (33 mm) through 3.1/2" (89 mm). A sturdy latch and safety latch lock combination holds the YT elevator securely in closed position.

HYT Tubing Elevator

The HYT elevator is designed to accommodate the widest possible range of tubing. The key is the various combinations possible with three different slip-setting rings, reducing inserts and two sizes of slips. The HYT elevator handles 2.3/8", 2.7/8" or 3.1/2" (60.33, 70.02 or 88.9 mm) OD tubing, with any type of upset and any wall thickness. The slip provides a full 12" (304.8 mm) of vertical contact on the pipe.

MYT Slip Tubing Elevator

The MYT elevator is a light-weight elevator for medium wells. It handles all tubing within its range with one set of slips, plus reducing inserts. The MYT elevator has four curved slips that form a circle around the tubing. This assures an uniform grip with minimum marking of pipe.
