Single Joint Elevator
Single Joint Elevator

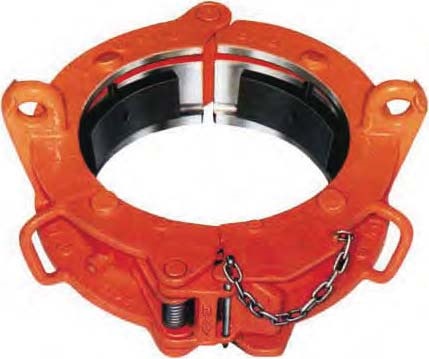

Single Joint Center Latch Elevator
German Origin by FORUM (Blohm+Voss) Oil Tools
|
SJ-Type |
||||
|
TYPE |
P/N |
Description |
Rated Capacity |
Pipe Size min.-max. |
|
SJ-2.5 |
650 200 - Y |
for 5°, 12° and 18° External Upset |
2,5 tons |
2 3/8" – 5 1/2" |
|
SJ-3/1 |
650 300 - Y |
for 5°, 12° and 18° External Upset |
3 tons |
3 1/2" – 7 5/8" |
SJL and SPL single-joint, center-latch elevators are designed to replace unsafe rope slings for hoisting collar-type pipe into position. The SJL 90° elevator enables the crew to handle pipe properly, help avoid damage to pipe threads and reduce the chances of accident or injury. The SPL elevator is the same as the SJL elevator except that the SPL elevator is designed for use on tapered pipe, conforming to API specifications for extreme line casing.
|
Main Dimensions |
||||
|
TYPE |
Size |
A |
B |
C |
|
SJ-2.5 |
2 3/8“- 5.5“ |
179 mm = 73/64" |
320 mm = 1219/32" |
320 mm = 1219/32" |
|
SJ-3/1 |
3 1/2“- 7 5/8“ |
179 mm = 73/64" |
393 mm = 1515/32" |
370 mm = 149/16" |
Single Joint Elevator
German Origin by FORUM (Blohm+Voss) Oil Tools
|
SJ - Single Joint Collar Type, 90° Shoulder and 18° |
|||
|
TYPE |
P/N |
R.C. TONS (MT) |
SIZE O.D. |
|
SJ – 2 |
7001-XXX |
5 (4.5) |
2 3/8” - 5 1/2” |
|
SJ – 3 |
7002-XXX |
5 (4.5) |
6 5/8” - 7 5/8” |
|
SJ – 4 |
7003-XXX |
5 (4.5) |
8 5/8” - 10 3/4” |
|
SJ – 5 |
7004-XXX |
5 (4.5) |
11 3/4” - 14” |
|
SJ – 6 |
7005-XXX |
5 (4.5) |
16” - 20” |
|
SJ – 7 |
7006-XXX |
5 (4.5) |
21 1/4” - 24 1/2” |
|
SJ – 8 |
7007-XXX |
5 (4.5) |
26” - 30” |
|
SP (18°) |
7115-XXX |
5 (4.5) |
2 3/8” - 6 5/8” |
|

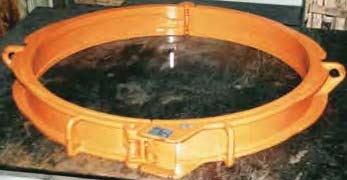

SJ - Single Joint Center Latch Elevator LSJ/ SJS-Collar-Type |
|||
|
TYPE |
P/N |
Rated Capacity |
Pipe Size min.-max. |
|
LSJ-4/1 |
660 480-Y-BC Collar-Type Elevator |
4 tons |
2 3/8“ - 4“ |
|
LSJ-4/2 |
660 440-Y-BC Collar-Type Elevator |
4 tons |
4“ - 6“ |
|
SJS-5/3 |
660 500-Y-BC Collar-Type Elevator |
5 tons |
6 1/2“ - 9 5/8“ |
|
SJS-5/4 |
660 520-Y-BC Collar-Type Elevator |
5 tons |
9 5/8“ – 12 3/4“ |
|
SJS-5/5 |
660 540-Y-BC Collar-Type Elevator |
5 tons |
13“ - 16“ |
|
SJS-6/6 |
660 600-Y-BC Collar-Type Elevator |
6 tons |
16.3/4“ - 20“ |
|
SJS-6/8 |
660 640-Y-BC Collar-Type Elevator |
6 tons |
22“ - 30“ |
|
SJS-6/9 |
660 660-Y-BC Collar-Type Elevator |
6 tons |
30“ - 36“ |
|
Main Dimensions |
||||
|
TYPE |
Size |
A |
B |
C |
|
LSJ-4/1 |
2 3/8“- 4“ |
184 mm = 71/4" |
225 mm = 855/64" |
316 mm = 127/16" |
|
LSJ-4/2 |
4“-6“ |
184 mm = 71/4" |
275 mm = 1053/64" |
305 mm = 12’’ |
|
SJS-5/3 |
6 1/2“-9 5/8“ |
169 mm = 641/64" |
380 mm = 1461/64" |
430 mm = 1615/16" |
|
SJS-5/4 |
9 5/8“–12 3/4“ |
169 mm = 641/64" |
465 mm = 1819/64" |
520 mm = 2015/32" |
|
SJS-5/5 |
13“-16“ |
169 mm = 641/64" |
549 mm = 2139/64" |
610 mm = 241/64" |
|
SJS-6/6 |
163/4“-20“ |
187 mm = 723/64" |
660 mm = 2525/32" |
720 mm = 2811/32" |
|
SJS-6/8 |
22“-30“ |
187 mm = 723/64" |
932 mm = 3611/16" |
972 mm = 3817/64" |
|
SJS-6/9 |
30“-36“ |
130 mm = 57/64" |
1100mm = 43 5/16" |
1180 mm = 4639/64" |
