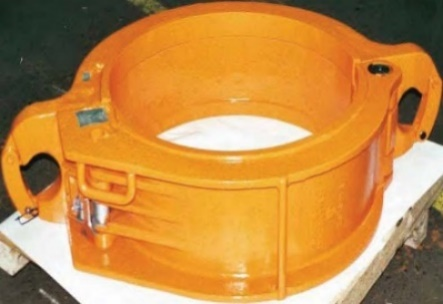

Side Door Elevator - Collar Type

Side Door Elevator - Collar Type

German Origin by FORUM (Blohm+Voss) Oil Tools

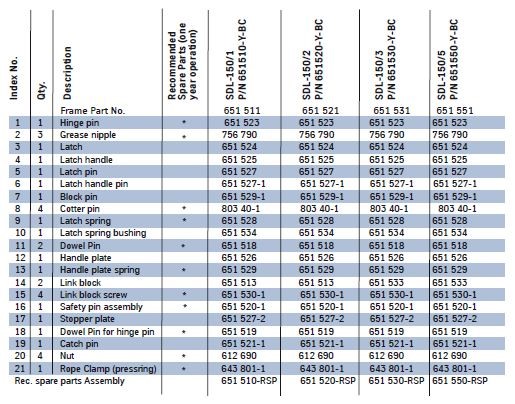

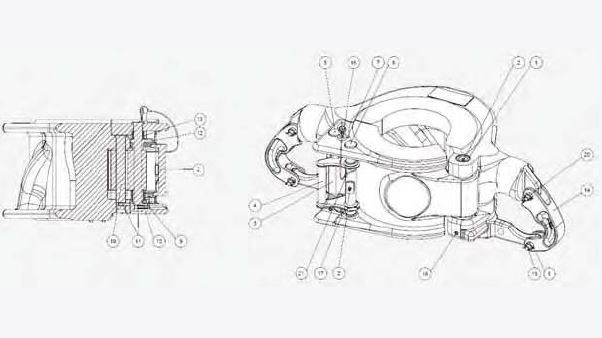

Type SDL for Drill Collar, Casing and Tubing - Pipe Size 4.3/8" - 22" - Capacity: 150 ton
TYPE	Part-No.	Size O.D.	Capacity rated tons	Link size min.-max.	A - Dimension	B - Dimension	C - Dimension
SDL-150/1	651 510	4.3/8“- 8“	150 tons	150-500tons	275 mm= 10.5/6“	415,5 mm= 16.23/64‘’	792 mm = 31.11/64“
SDL-150/2	651 520	8“- 11“	150 tons	150-500tons	266 mm = 10.1/2“	444,5 mm = 17.1/2“	884 mm = 34.51/64“
SDL-150/3	651 530	11’’- 14’’	150 tons	150-500tons	290 mm = 11.27/64“	493 mm = 19.25/64“	974 mm = 38.11/32“
SDL-150/5	651 550	18’’- 2’’	150 tons	150-500tons	290 mm = 11.27/64“	690 mm = 27.5/32“	1319 mm = 51.15/16

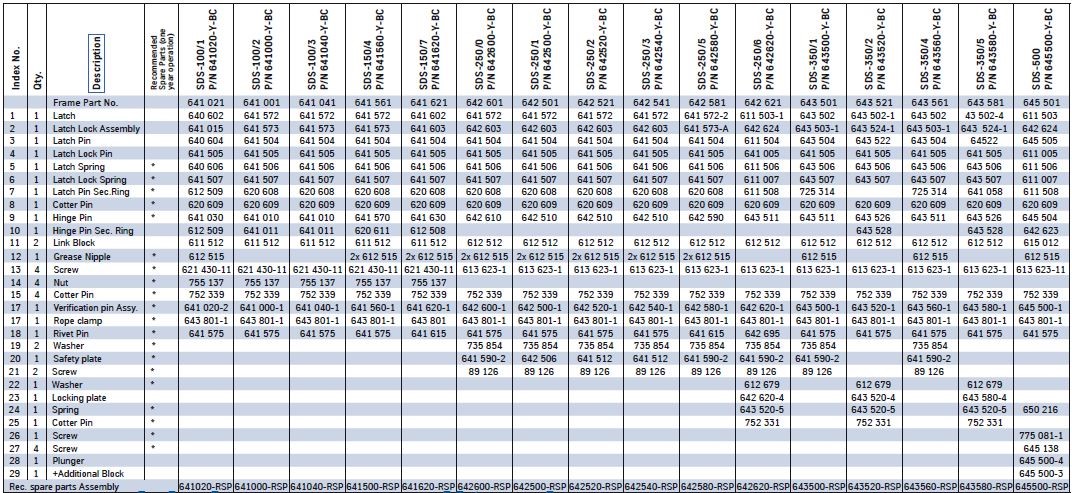

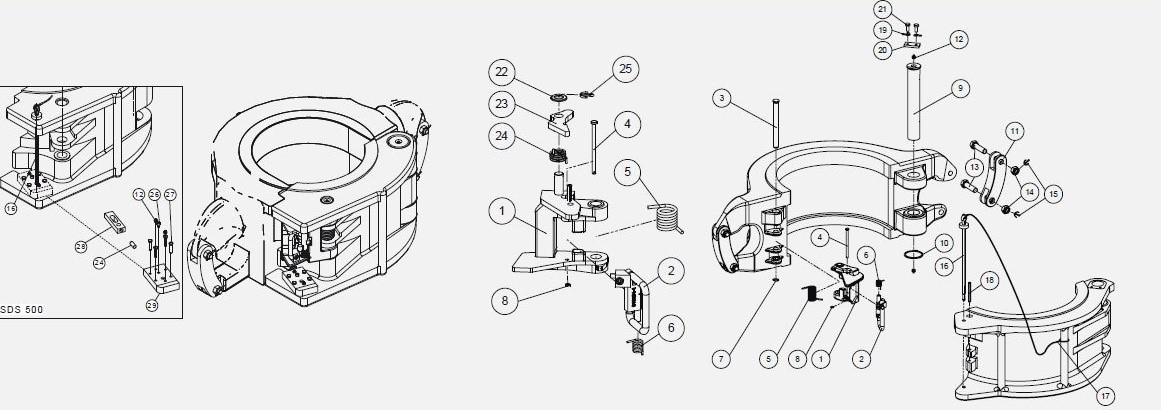

Type SDS for Drill Collar, Casing and Tubing, Pipe Size 2.3/8" - 36", Capacities up to 500 ton
TYPE	Part-No.	Size O.D.	Capacity rated tons	Link size min.-max.	A - Dimension	B - Dimension	C - Dimension
SDS-100/1	641 020	2.3/8“- 4.1/8“	100 tons	150- 350 tons	265 mm = 10.7/16“	266 mm = 10.15/32“	560 mm = 22.3/64“
SDS-100/2	641 000	4“- 6.3/4“	100 tons	150- 350 tons	265 mm = 10.7/16“	363 mm = 15.5/64“	650 mm = 25.19/32“
SDS-100/3	641 040	6.3/4“- 9.5/8“	100 tons	150- 350 tons	265 mm = 10.7/16“	445 mm = 17.33/64“	760 mm = 29.59/64“
SDS-150/4	641 560	13“- 16“	150 tons	150- 500 tons	290 mm = 11.27/64“	636 mm = 25.1/32“	992 mm = 39.3/64“
SDS-150/7	641 620	24“- 30“	150 tons	150- 500 tons	360 mm = 14.11/64“	1040 mm = 40.61/64“	1484 mm = 58.27/64“
SDS-250/0	642 600	6.1/2“- 9.5/8“	250 tons	250- 500 tons	330 mm = 13“	455 mm = 17.59/64“	888 mm = 43.61/64“
SDS-250/1	642 500	9.5/8“- 13.3/8“	250 tons	250- 500 tons	330 mm = 13“	545 mm = 21.29/64“	996 mm = 29.13/64“
SDS-250/2	642 520	13.3/8“-18.5/8“	250 tons	250- 500 tons	330 mm = 13“	688 mm = 27“	1146 mm = 45.1/8“
SDS-250/3	642 540	18.5/8“- 20“	250 tons	250- 500 tons	330 mm = 13“	742 mm = 29.7/32“	1170 mm = 45.1/16“
SDS-250/5	642 580	24“- 30“	250 tons	250- 500 tons	340 mm = 13.25/64“	1032 mm = 40.41/64“	1430 mm = 54.19/64“
SDS-250/6	642 620	30“- 36“	250 tons	250- 500 tons	370 mm = 14.9/16“	1230 mm = 48.7/16“	1720 mm = 67.23/32“
SDS-350/1	643 500	6.3/4“- 9.3/4“	350 tons	350- 500 tons	370 mm = 14.9/16“	550 mm = 21.21/32“	950 mm = 37.13/32“
SDS-350/2	643 520	10.3/4“- 16.3/4“	350 tons	350- 500 tons	370 mm = 14.9/16“	730 mm = 28.3/4“	1135 mm = 44.11/16“
SDS-350/4	643 560	18.5/8“- 21.1/2“	350 tons	350- 500 tons	370 mm = 14.9/16“	815 mm = 32.3/32“	1190 mm = 46.27/32“
SDS-350/5	643 580	24“- 30“	350 tons	350- 500 tons	370 mm = 14.9/16“	1105 mm = 43.1/2“	1473 mm = 58“
SDS-500	645 500	10.3/4“- 16“	500 tons	500- 750 tons	400 mm = 15.3/4“	1230 mm = 48.7/16“	1720 mm = 67.23/32“

Side Door Elevator The X-series elevators handle all sizes of collar-type tubing, drill pipe and casing. The SMX has a patented latch & latch lock arrangement mounted on the elevator door. The handle protects the latch from accidental opening. Both latches operate from a single handle. The SLX-elevators are offered alternatively to the SMX-elevators. They provide proven technology and economics. The SX-elevator is a mid-sized elevator with higher rating compared to the SLX and SMX, while the SLX DD elevator provides for the largest sizes.
