Safety Clamp Casing & Tubing
Safety Clamp Casing & Tubing
German Origin by FORUM (Blohm+Voss) Oil Tools
Special points

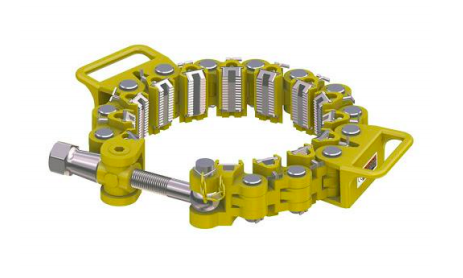

The Blohm+Voss Safety Clamp is designed to handle drill collars and tubulars with flush joints or low profile shoulders. If the lead is increased or the pipe dropped the Safety Clamp web shaped dies will grip tighter. Blohm+Voss Safety clamp comes in sizes to fit pipe sizes from 1 1/8“ to 36“. The safety clamp is made from alloy steel, heat treated and magnetic par-tical inspected. All steel specifications are certified.
|
Collar Size |
Part-No. |
No. of Links |
|
Collar Size |
Part-No. |
No. of Links |
|
1.1/8“-2“ |
88003 |
4 |
|
13.1/2“-14.5/8“ |
99510 |
17 |
|
2.1/8“-3.1/4“ |
88004 |
5 |
|
14.1/2“-15.5/8“ |
99511 |
18 |
|
3.1/4“-4.1/2“ |
88005 |
6 |
|
15.1/2“-17“ |
99512 |
18 |
|
4.1/2“-5.5/8“ |
99501 |
8 |
|
16.1/2“-18“ |
99513 |
19 |
|
5.1/2“-6.5/8“ |
99502 |
9 |
|
17.1/2“-19“ |
99514 |
20 |
|
6.1/2“-7.5/8“ |
99503 |
10 |
|
18.1/2“-20“ |
99515 |
21 |
|
7.1/2“-8.5/8“ |
99504 |
11 |
|
19.1/2“-21.1/2“ |
99516 |
22 |
|
8.1/2“-9.5/8“ |
99505 |
12 |
|
21.1/2“-22.5/8“ |
99517 |
23 |
|
9.1/2“-10.5/8“ |
99506 |
13 |
|
23“-24“ |
99518 |
24 |
|
10.1/2“- 11.5/8“ |
99507 |
14 |
|
24.1/2“-26“ |
99519 |
25 |
|
11.1/2“-12.5/8“ |
99508 |
15 |
|
29.1/2“-30.1/2“ |
99525 |
26 |
|
12.1/2“-13.5/8“ |
99509 |
16 |
|
35.1/2“-36.1/2“ |
99526 |
27 |
