Rotary Casing Slips and Drill Pipe

Rotary Casing Slips and Drill Pipe

Special points

All Slips are made-out of API-7K material only.

Can be used up to minus 40°C.

Drill pipe slip can be used with pneumatic systems.

RSM Medium Rotary Slip Slip complete with inserts			CSL Extra Long Casing Slip
			Part-No.		Slip Body Size		API Pipe Size O.D
Part-No.	Slip Body Size	API Pipe Size O.D	87 110		CSL		6.5/8“
82 110	3.1/2“	2.3/8“	87 120		CSL		7“
82 120	3.1/2“	2.7/8“	87 130		CSL		7.5/8“
82 130	3.1/2“	3.1/2“	87 140		CSL		8.5/8“
			87 150	CSL		9.5/8“
RSX Extra Long Rotary Slip Slip complete with inserts			87 160	CSL		10.3/4“
			87 170	CSL		11.3/4“
Part-No.	Slip Body Size	API Pipe Size O.D	87 180		CSL		13.3/8“
83 210	4.1/2“	3.1/2“	87 190		CSL		16“
83 220	4.1/2“	4“	87 200		CSL		18.5/8“
83 230	4.1/2“	4.1/2“	87 210		CSL		20“
83 310	5“	4“	87 220		CSL		24“
83 320	5“	4.1/2“	87 230		CSL		26“
83 330	5“	5’’	87 240		CSL		30“
83 410	5.1/2“	4.1/2“
83 420	5.1/2“	5’’
83 430	5.1/2“	5.1/2“
83 510	7“	6“
83 520	7“	6.5/8“
83 530	7“	7“

DCS Multisegment Drill Collar Slip Slip complete with circular buttons			CSC Conductor Pipe Slip Slip complete with circular buttons
Part-No.	Slip Body Size	API Pipe Size O.D	Part-No.		Slip Body Size		API Pipe Size O.D
84 110	DCS	3“-4“	88 110		CSC		24“
84 120	DCS	4“-4.7/8“	88 120		CSC		26“
			88 130		CSC		30“
DCM Multisegment Drill Collar Slip Slip complete with circular buttons
Part-No.	Slip Body Size	API Pipe Size O.D
85 110	DCM	4.1/2“-6“
85 120	DCM	5.1/2“-7“

DCL Multisegment Drill Collar Slip Slip complete with circular buttons
Part-No.	Slip Body Size	API Pipe Size O.D
86 120	DCL	6.3/4“-8.1/4“
86 130	DCL	8“-9.1/2“
86 140	DCL	8.1/2“-10“
86 150	DCL	9.1/4“-11.1/2“
86 160	DCL	11“-12.3/4“
86 170	DCL	12“-14“

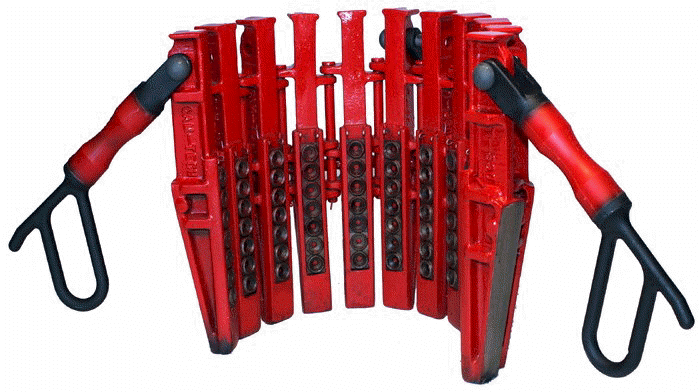

DCS drill collar slips

Each slip segments are castings with an extra-long back to provide maximum support to the circular button gripping elements. Full wraparound design and circular buttons assure positive holding and slip setting. Drill collar slips are ﬂat on top to accommodate the MP clamp. All NOV slips have an API taper of 4"/ft on the diameter.

CMS-XL extra-long multi-segment casing slips

Today's deeper drilling calls for long and heavy casing strings. NOV has slips to handle any casing job. Varco CMS-XL slips are manufactured from castings, reinforced to take severe service. The self-centering full wraparound grip prevents damage to casing. With certain simple adjustments, the CMS-XL can accommodate casing from 6.5/8" to 30" OD. All NOV slips have an API taper of 4"/ft on the diameter.

SDS, SDML, SDXL and SDHL rotary slips

SDS, SDML, SDXL and SDHL rotary slips are for use in API standard insert bowls. Featuring better contact and distribution of load on drill pipe through a superior wraparound conﬁguration and unique insert design, these slips prevent bottle necking and gouging damage. The buttress design of the body segments provides great strength while minimizing weight for ease of handling.

WARNING: SDXL type hand slips are not to be to be used on ﬂoating drilling vessels / installations. Use SDHL type hand slips instead.

ROTARY SLIPS, CASING SLIPS

Rotary slips complete*						CMS-XL casings slips and cp-s conductor pipe slips			DCS drill collars slips complete
Slip size	API Pipe Sizes OD	SDS	SDML	SDXL	SDHL 750 ton	Slip Set	Casing OD	P/N	Slip Set	Drill Collar OD	P/N
Inches	Inches	P/N	P/N	P/N	P/N	CMS-XL	6.5/8	5315	DCS-S	3 - 4	2572
3.1/2	2.3/8	3901	15524	-	-		7	5301		4 - 4.7/8	2573
	2.7/8	3903	15523	-	-		7.5/8	5303	DCS-R	4.1/2 - 6	2552
	3.1/2	3905	15522	-	-		8.5/8	5305		5.1/2 - 7	2550
4.1/2	3.1/2	3907	15563	V 15515	-		9.5/8	5307	DCS-L	5.1/2 - 7	2501
	4	3909	15564	15514	-		10.3/4	V5309		6.3/4 - 8.1/4	2503
	4.1/2	3911	15565	V15513	-		11.3/4	5311		8 - 9.1/2	2507
5	4	-	15567	15518	-		13.3/8	5313		8.1/2 - 10	2530
	4.1/2	-	15568	15517	-		16	5325		9.1/4 - 11.1/4	2508
	5	-	15569	V15516	-		18	5335-1		11 - 12.3/4	2534
5.1/2	4.1/2	-	15571	15521	50006021-450		18.5/8	5333		12 - 14	V2536
	5	-	15572	15520	50006021-500		20	5329
	5.1/2	-	15573	V15519	50006021-550		24	5331
6.7/8	5.5/8	-	-	-	50006040-563		26	5346
	5.3/4	-	-	-	50006040-575		30	5342
	5.7/8	-	-	-	50006040-588	CP-S	24	5338
	6	-	-	-	50006040-600		26	5344
	6.3/8	-	-	-	50006040-638		30	5340
	6.5/8	-	-	-	50006040-663
	6.7/8	-	-	-	50006040-688
7	6.5/8	-	-	86720	-
	7	-	-	86719	-

** Load rings for SDHL
Slip size	Load ring P/N	Cotter pin part number
5.1/2	50006033	51403-12-S
6.7/8	50006038	51403-12-S

Drill Collar Slips

Casing Slips

CIRCULAR BUTTONS

CIRCULAR BUTTONS FOR CMS-XL AND CP-S :							CIRCULAR BUTTONS FOR DCS SLIPS
Circular Buttons							Circular Buttons
			Weight							Weight
Slip Set	Casing OD (Inches)	P/N	lbs	kg	Qty	Slip Set		Drill Collar (Inches)	P/N	lbs	kg	Qty
CMS-XL	6.5/8	2628-144	36	16	144	CP-S		24	2631-156	26	12	156
	7	2619-144	36	16	144			26	2631-168	28	13	168
	7.5/8	2630-144	24	11	144			30	2631-192	32	14.5	192
	8.5/8	2630-156	26	12	156	DCS – S		3 - 4	2628-49	13	6	49
	9.5/8	2630-168	28	13	168			4 – 4.7/8	2620-49	8	3.5	49
	10.3/4	2630-180	30	14	180	DCS – R		4.1/2 – 6	2628-63	16	7	63
	11.3/4	2627-204	51	23	204			5.1/2 – 7	2620-63	11	5	63
	13.3/8	2630-216	36	16	216	DCS – L		5.1/2 – 7	2513-88	22	10	88
	16	2631-252	43	19.5	252			6.3/4 – 8.1/4	2630-88	15	7	88
	18.5/8	2626-300	60	27	300			8 – 9.1/2	2630-96	16	7	96
	20	2631-312	52	23.3	312			8.1/2 – 10	2627-104	26	12	104
	24	2631-360	60	27	360			9.1/4 – 11.1/4	2630-112	19	8.5	112
	26	2631-396	64	29	396			11 – 12.3/4	2625-136	13	6	136
	30	2631-444	72	32.5	444			12 - 14	2630-136	16	7	136

SDS SHORT ROTARY SLIPS AND SDS INSERTS
Slip Body Size [inches]		3.1/2’’			4.1/2’’
Pipe Size [inches]	2.3/8	2.7/8	3.1/2	3.1/2	4
P/N Slip w/inserts	3901	3903	3905	3907	3909	3911
Weigth Slip w/insert [lbs / kg]	134/61	128/ 58	124/56	162 / 73	155/70	146/66
Insert Set: part number	2160-24	2161-24	2162-24	2163-36	2164-36	2165-36
Insert Set [Qty]	24	24	24	36	36	36
SDML MEDIUM ROTARY SLIPS AND SDML INSERTS
Slip Body Size [inches]	3.1/2’’	3.1/2’’	3.1/2’’	4.1/2’’	4.1/2’’	4.1/2	5’’	5’’	5’’	5.1/2’’	5.1/2’’	5.1/2’’
Pipe Size [inches]	2.3/8	2.7/8	3.1/2	3.1/2	4	4.1/2	4	4.1/2	5	4.1/2	5	5.1/2
P/N Slip w/inserts	15524	15523	15522	15563	15564	15565	15567	15568	15569	15571	15572	15573
Weigth Slip w/insert [lbs / kg]	193/ 87.5	188/ 85	180/ 81.5	207/ 94	199/ 90	188/ 85	204/ 92.5	196/ 89	185/ 84	200/ 91	192/ 87	181/ 82
Insert Set: part number	2160-30	2161-30	2162-30	2163-45	2164-45	2165-45	2168-45	2166-45	2167-45	2168-45	2169-45	2170-45
Insert Set [Qty]	30	30	30	45	45	45	45	45	45	45	45	45
SDXL EXTRA LONG ROTARY SLIPS AND INSERTS
Slip Body Size [inches]	4.1/2’’				5’’
Pipe Size [inches]	3.1/2	4	4.1/2	4	4.1/2	5	4.1/2
P/N Slip w/inserts	V15515	15514	V15513	15518	15517	V15516	15521
Weigth Slip w/insert [lbs / kg]	229/ 104	219/ 99	205/ 93	237/ 107.5	227/ 103	213/ 96.5	234/ 106
Insert Set: part number	2163-54	2164-54	2165-54	2168-54	2166-54	2167-54	2168-54
Insert Set [Qty]	54	54	54	54	54	54	54
Slip Body Size [inches]	5.1/2’’		7’’
Pipe Size [inches]	5	5.1/2	5.3/4	5.7/8	6	6.5/8	7
P/N Slip w/inserts	15520	V15519	86719-1	86722-1	86719-2	86720	86719
Weigth Slip w/insert [lbs / kg]	224/ 101.5	210/ 95	242/ 110	232/ 105	220/ 100	200/ 91	190/ 110
Insert Set: part number	2169-54	2170-54	2521	2656	2632-60	2172-60	2173-60
Insert Set [Qty]	54	54	60	60	48	60	60
