PREMIERE CASING Provides The Bowl & Slips Baash-Ross & Varco Hinged Casing Spider will fit most casing handling operations. It can be placed on the rotary table, mounted on a platform which replaces the rotary table, or supported by cribbing, depending upon the auxiliary equipment and procedure to be followed. Sizes Ring from 30” to 9 5/8”.
|
UC-3 CASING SLIPS
Most casing strings’ weight and the relatively thin pipe wall make it important that the supporting slips provide full circumferential grip. |
|
The BAASS-ROSS Type UC-3 slips achieves this with many narrow segments. They are hinged together to wrap around the casing and exert a more uniform pressure. With each segment carrying the same load, they automatically center the casing string within the bushing or spider. |
|
The UC-3 has a 3” taper. With changes in the number of segments and liners, it will handle strings from 16” OD to 42” OD. Liners are held in place by a liner Retainer Key and Cotter Pinch. |
|

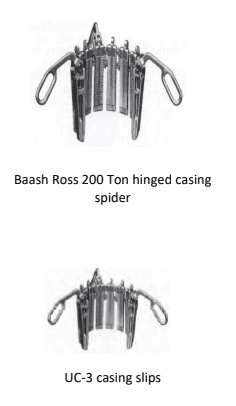

CASING SPIDERS The Baash Ross 200 ton hinged casing spider will fit most casing handling operations. It can be placed on the rotary table, mounted on a platform which replaces the rotary table, or supported by cribbing, depending upon the auxiliary equipment and procedure to be followed. |
|
UC-3 CASING SLIPS Most casing strings’ weight and the relatively thin pipe wall make it important that the supporting slips provide full circumferential grip. The Baash Ross type UC-3 slips achieves this with many narrow segments. They are hinged together to wrap around the casing and exert a more uniform pressure. With each segment carrying the same load, they automatically center the casing string within the bushing or spider. The UC-3 has a 3” taper. With changes in the number of segments and liners, it will handle strings from 16” OD to 42” OD. Liners are held in place by a liner retainer key and cotter pins. |
200 – 500 TON HINGED CASING SPIDERS, INSERT BUSHINGS AND UC-3 SLIPS
|
Csg. Size |
UC-3 Slip No. |
Weight [lbs / kg] |
30” Spider 7704-A-161 |
Weight [lbs / kg] 1,200 |
36” Spider 7704-A-167 |
Weight [lbs / kg] 1,100 |
42” Spider 7704-A-179 |
Weight [lbs / kg] 1,525 |
|||||
|
16” |
7704-5036 |
226 / 102 |
Bushing 7704- A-165 Retainers 50012-148-8 |
975 / 442 |
|
|
|
|
|||||
|
18.5/8” |
7704-5035 |
325 / 147 |
Bushing 7704- A-164 Retainers 50012-50-8 |
900 / 408 |
Bushing 7704-A-172 Retainers 50012-76-8 |
1135 / 514 |
|
|
|||||
|
20” |
7704-5034 |
283 / 128 |
Bushing 7704- A-164 Retainers 50012-50-8 |
900 / 408 |
Bushing7704-A-172 Retainers 50012-76-8 |
1135 / 514 |
|
|
|||||
|
22.1/2” |
7704-5002 |
359 / 162 |
Bushing 7704- A-163 Retainers 50012-38-C8 |
750 / 340 |
Bushing 7704-A-171 Retainers 900041-441 |
924 / 419 |
|
|
|||||
|
24” |
7704-5001 |
312 / 141 |
Bushing 7704- A-163 Retainers 50012-38-C8 |
750 / 340 |
Bushing 7704-A-171 Retainers 900041 -441 |
924 / 419 |
|
|
|||||
|
26” |
7704-5006 |
325 / 147 |
Bushing 7704- A-162 Retainers 50012-26-C8 |
605 / 274 |
Bushing 7704-A-170 Retainers 900042-186 |
817 / 370 |
|
|
|||||
|
30” |
7704-5005 |
367 / 166 |
Use 30” Spider |
|
Bushing 7704-A-169 Retainers 50012-32-C8 |
640 / 290 |
Bushing 7704- A-180 Retainers 900042-708 |
1400 / 635 |
|||||
|
33” |
7704-5008 |
410 / 185 |
|
|
Bushing 7704-A-168 Retainers 50012-20-C8 |
|
|
|
|||||
|
36” |
7704-5007 |
437 / 198 |
|
|
Use 36” Spider |
|
Bushing 7704-A- 178 Retainers 50012-36-C8 |
1226 / 556 |
|||||
|
42” * |
7704-5019 |
495 / 224 |
|
|
|
|
Use 42” Spider |
|
|||||
|
* 42" Casing spider is rated at 300 sTon / 272 Ton. |
|
|
|
|
|
||||||||
